Tmax XT

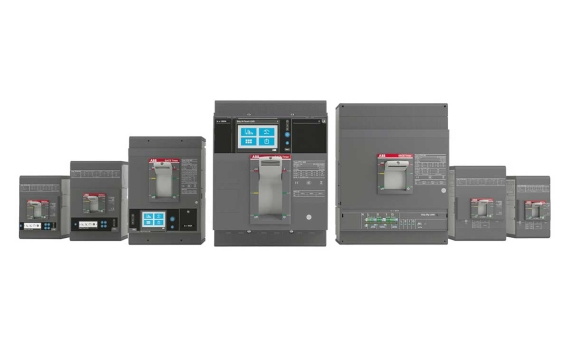

Moulded Case Circuit Breakers รุ่น Tmax XT ประกอบไปด้วย เฟรมทั้งหมด 7 ขนาดที่รองรับกระแสใช้งานสูงสุดถึง 1600 A. โดยมี ส่วนประมวลผลป้องกัน (Protection Unit Release) ทั้งประเภท Thermomagnetic และ Electronic ที่มีรูปแบบการป้องกันให้เลือกใช้ อย่างสมบูรณ์ ครอบคลุมทุกฟังก์ชั่นการใช้งาน ทั้งในโรงงานอุตสาหกรรม ห้างสรรพสินค้า และอาคารสํานักงาน Power Plant, Offshore, Solar Plant โรงพยาบาล ระบบสาธารณูปโภค และอื่นๆ โดยเฉพาะอย่างยิ่งอุปกรณ์ประกอบเสริมที่ครบครัน อาทิ หน้าจอ LCD, Modbus communication module, Energy Display, Interlocking, Remote Operate Remote signal, Mechanical Accessory และอื่นๆ
XT1 - 3 poles Thermomagnetic
| สินค้า | Amp trip (AT) (In) |
Amp Frame (AF) (Iu) |
Icu at 415Vac (kA) |
I1 (A) ปรับตั้งค่า |
I3 (A) | ชื่อรุ่น | รหัสสินค้า | ราคา (บาท) |
 |
16 | 160 | 18 | 11.2-16 | 450 | XT1B 160 TMD 16-450 3p F F | 1SDA066799R1 | 4,280 |
| 20 | 160 | 18 | 14-20 | 450 | XT1B 160 TMD 20-450 3p F F | 1SDA066800R1 | 4,280 | |
| 25 | 160 | 18 | 17.5-25 | 450 | XT1B 160 TMD 25-450 3p F F | 1SDA066801R1 | 4,280 | |
| 32 | 160 | 18 | 22.4-32 | 450 | XT1B 160 TMD 32-450 3p F F | 1SDA066802R1 | 4,280 | |
| 40 | 160 | 18 | 28-40 | 450 | XT1B 160 TMD 40-450 3p F F | 1SDA066803R1 | 4,280 | |
| 50 | 160 | 18 | 35-50 | 500 | XT1B 160 TMD 50-500 3p F F | 1SDA066804R1 | 4,280 | |
| 63 | 160 | 18 | 44.1-63 | 630 | XT1B 160 TMD 63-630 3p F F | 1SDA066805R1 | 4,280 | |
| 80 | 160 | 18 | 56-80 | 800 | XT1B 160 TMD 80-800 3p F F | 1SDA066806R1 | 4,280 | |
| 100 | 160 | 18 | 70-100 | 1000 | XT1B 160 TMD 100-1000 3p F F | 1SDA066807R1 | 4,280 | |
| 125 | 160 | 18 | 87.5-125 | 1250 | XT1B 160 TMD 125-1250 3p F F | 1SDA066808R1 | 5,350 | |
| 160 | 160 | 18 | 112-160 | 1600 | XT1B 160 TMD 160-1600 3p F F | 1SDA066809R1 | 5,350 | |
| 16 | 160 | 25 | 11.2-16 | 450 | XT1C 160 TMD 16-450 3p F F | 1SDA080825R1 | 4,360 | |
| 20 | 160 | 25 | 14-20 | 450 | XT1C 160 TMD 20-450 3p F F | 1SDA080826R1 | 4,360 | |
| 25 | 160 | 25 | 17.5-25 | 450 | XT1C 160 TMD 25-450 3p F F | 1SDA067391R1 | 4,360 | |
| 32 | 160 | 25 | 22.4-32 | 450 | XT1C 160 TMD 32-450 3p F F | 1SDA067392R1 | 4,360 | |
| 40 | 160 | 25 | 28-40 | 450 | XT1C 160 TMD 40-450 3p F F | 1SDA067393R1 | 4,360 | |
| 50 | 160 | 25 | 35-50 | 500 | XT1C 160 TMD 50-500 3p F F | 1SDA067394R1 | 4,360 | |
| 63 | 160 | 25 | 44.1-63 | 630 | XT1C 160 TMD 63-630 3p F F | 1SDA067395R1 | 4,360 | |
| 80 | 160 | 25 | 56-80 | 800 | XT1C 160 TMD 80-800 3p F F | 1SDA067396R1 | 4,360 | |
| 100 | 160 | 25 | 70-100 | 1000 | XT1C 160 TMD 100-1000 3p F F | 1SDA067397R1 | 4,360 | |
| 125 | 160 | 25 | 87.5-125 | 1250 | XT1C 160 TMD 125-1250 3p F F | 1SDA067398R1 | 5,460 | |
| 160 | 160 | 25 | 112-160 | 1600 | XT1C 160 TMD 160-1600 3p F F | 1SDA067399R1 | 5,460 | |
| 16 | 160 | 36 | 16 | 450 | XT1N 160 TMF 16-450 3p F F | 1SDA080827R1 | 5,180 | |
| 20 | 160 | 36 | 20 | 450 | XT1N 160 TMF 20-450 3p F F | 1SDA080828R1 | 5,180 | |
| 25 | 160 | 36 | 17.5-25 | 450 | XT1N 160 TMD 25-450 3p F F | 1SDA080829R1 | 5,180 | |
| 32 | 160 | 36 | 22.4-32 | 450 | XT1N 160 TMD 32-450 3p F F | 1SDA067411R1 | 5,180 | |
| 40 | 160 | 36 | 28-40 | 450 | XT1N 160 TMD 40-450 3p F F | 1SDA067412R1 | 5,180 | |
| 50 | 160 | 36 | 35-50 | 500 | XT1N 160 TMD 50-500 3p F F | 1SDA067413R1 | 5,180 | |
| 63 | 160 | 36 | 44.1-63 | 630 | XT1N 160 TMD 63-630 3p F F | 1SDA067414R1 | 5,180 | |
| 80 | 160 | 36 | 56-80 | 800 | XT1N 160 TMD 80-800 3p F F | 1SDA067415R1 | 5,180 | |
| 100 | 160 | 36 | 70-100 | 1000 | XT1N 160 TMD 100-1000 3p F F | 1SDA067416R1 | 5,180 | |
| 125 | 160 | 36 | 87.5-125 | 1250 | XT1N 160 TMD 125-1250 3p F F | 1SDA067417R1 | 6,470 | |
| 160 | 160 | 36 | 112-160 | 1600 | XT1N 160 TMD 160-1600 3p F F | 1SDA067418R1 | 6,470 | |
| 16 | 160 | 50 | 16 | 450 | XT1S 160 TMF 16-450 3p F F | 1SDA080830R1 | 8,780 | |
| 20 | 160 | 50 | 20 | 450 | XT1S 160 TMF 20-450 3p F F | 1SDA080831R1 | 8,780 | |
| 25 | 160 | 50 | 17.5-25 | 450 | XT1S 160 TMD 25-450 3p F F | 1SDA080832R1 | 8,780 | |
| 32 | 160 | 50 | 22.4-32 | 450 | XT1S 160 TMD 32-450 3p F F | 1SDA080833R1 | 8,780 | |
| 40 | 160 | 50 | 28-40 | 450 | XT1S 160 TMD 40-450 3p F F | 1SDA080834R1 | 8,780 | |
| 50 | 160 | 50 | 35-50 | 500 | XT1S 160 TMD 50-500 3p F F | 1SDA067431R1 | 8,780 | |
| 63 | 160 | 50 | 44.1-63 | 630 | XT1S 160 TMD 63-630 3p F F | 1SDA067432R1 | 8,780 | |
| 80 | 160 | 50 | 56-80 | 800 | XT1S 160 TMD 80-800 3p F F | 1SDA067433R1 | 8,780 | |
| 100 | 160 | 50 | 70-100 | 1000 | XT1S 160 TMD 100-1000 3p F F | 1SDA067434R1 | 8,780 | |
| 125 | 160 | 50 | 87.5-125 | 1250 | XT1S 160 TMD 125-1250 3p F F | 1SDA067435R1 | 10,930 | |
| 160 | 160 | 50 | 112-160 | 1600 | XT1S 160 TMD 160-1600 3p F F | 1SDA067436R1 | 10,930 | |
| 16 | 160 | 70 | 16 | 450 | XT1H 160 TMF 16-450 3p F F | 1SDA080835R1 | 10,420 | |
| 20 | 160 | 70 | 20 | 450 | XT1H 160 TMF 20-450 3p F F | 1SDA080836R1 | 10,420 | |
| 25 | 160 | 70 | 17.5-25 | 450 | XT1H 160 TMD 25-450 3p F F | 1SDA080837R1 | 10,420 | |
| 32 | 160 | 70 | 22.4-32 | 450 | XT1H 160 TMD 32-450 3p F F | 1SDA080838R1 | 10,420 | |
| 40 | 160 | 70 | 28-40 | 450 | XT1H 160 TMD 40-450 3p F F | 1SDA080839R1 | 10,420 | |
| 50 | 160 | 70 | 35-50 | 500 | XT1H 160 TMD 50-500 3p F F | 1SDA067449R1 | 10,420 | |
| 63 | 160 | 70 | 44.1-63 | 630 | XT1H 160 TMD 63-630 3p F F | 1SDA067450R1 | 10,420 | |
| 80 | 160 | 70 | 56-80 | 800 | XT1H 160 TMD 80-800 3p F F | 1SDA067451R1 | 10,420 | |
| 100 | 160 | 70 | 70-100 | 1000 | XT1H 160 TMD 100-1000 3p F F | 1SDA067452R1 | 10,420 | |
| 125 | 160 | 70 | 87.5-125 | 1250 | XT1H 160 TMD 125-1250 3p F F | 1SDA067453R1 | 13,000 | |
| 160 | 160 | 70 | 112-160 | 1600 | XT1H 160 TMD 160-1600 3p F F | 1SDA067454R1 | 13,000 |
XT2 - 3 poles Electronic
| สินค้า | Amp trip (AT) (In) |
Amp Frame (AF) (Iu) |
Icu at 415Vac (kA) |
L | S | I | G | ชื่อรุ่น | รหัสสินค้า | ราคา (บาท) |
 |
63 | 160 | 36 | 1-10 *In | 1-10 *In | 1-10 *In | XT2N 160 Ekip Dip LS/I In=63A 3p F F* | 1SDA067056R1 | 18,080 | |
| 100 | 160 | 36 | 1-10 *In | 1-10 *In | 1-10 *In | XT2N 160 Ekip Dip LS/I In=100A 3p F F* | 1SDA067057R1 | 19,110 | ||
| 160 | 160 | 36 | 1-10 *In | 1-10 *In | 1-10 *In | XT2N 160 Ekip Dip LS/I In=160A 3p F F* | 1SDA067058R1 | 19,110 | ||
| 63 | 160 | 36 | 1-10 *In | 1-10 *In | 1-10 *In | XT2N 160 Ekip Dip LSI In=63A 3p F F | 1SDA100002R1 | 36,670 | ||
| 100 | 160 | 36 | 1-10 *In | 1-10 *In | 1-10 *In | XT2N 160 Ekip Dip LSI In=100A 3p F F | 1SDA100003R1 | 36,670 | ||
| 160 | 160 | 36 | 1-10 *In | 1-10 *In | 1-10 *In | XT2N 160 Ekip Dip LSI In=160A 3p F F | 1SDA100004R1 | 36,670 | ||
| 63 | 160 | 36 | 1-10 *In | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT2N 160 Ekip Dip LSIG In=63A 3p F F** | 1SDA100007R1-DT | 56,140 | |
| 100 | 160 | 36 | 1-10 *In | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT2N 160 Ekip Dip LSIG In=100A 3p F F** | 1SDA100008R1-DT | 56,140 | |
| 160 | 160 | 36 | 1-10 *In | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT2N 160 Ekip Dip LSIG In=160A 3p F F** | 1SDA100009R1-DT | 56,140 | |
| 63 | 160 | 50 | 25.2-63 | 1-10 *In | 1-10 *In | XT2S 160 Ekip Dip LS/I In=63A 3p F F* | 1SDA067802R1 | 19,970 | ||
| 100 | 160 | 50 | 40-100 | 1-10 *In | 1-10 *In | XT2S 160 Ekip Dip LS/I In=100A 3p F F* | 1SDA067803R1 | 21,000 | ||
| 160 | 160 | 50 | 64-160 | 1-10 *In | 1-10 *In | XT2S 160 Ekip Dip LS/I In=160A 3p F F* | 1SDA067804R1 | 21,000 | ||
| 63 | 160 | 50 | 25.2-63 | 1-10 *In | 1-10 *In | XT2S 160 Ekip Dip LSI In=63A 3p F F | 1SDA100032R1 | 38,570 | ||
| 100 | 160 | 50 | 40-100 | 1-10 *In | 1-10 *In | XT2S 160 Ekip Dip LSI In=100A 3p F F | 1SDA100033R1 | 38,570 | ||
| 160 | 160 | 50 | 64-160 | 1-10 *In | 1-10 *In | XT2S 160 Ekip Dip LSI In=160A 3p F F | 1SDA100034R1 | 38,570 | ||
| 63 | 160 | 50 | 25.2-63 | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT2S 160 Ekip Dip LSIG In=63A 3p F F ** | 1SDA100037R1-DT | 58,120 | |
| 100 | 160 | 50 | 40-100 | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT2S 160 Ekip Dip LSIG In=100A 3p F F ** | 1SDA100038R1-DT | 58,120 | |
| 160 | 160 | 50 | 64-160 | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT2S 160 Ekip Dip LSIG In=160A 3p F F ** | 1SDA100039R1-DT | 58,120 | |
| 63 | 160 | 70 | 25.2-63 | 1-10 *In | 1-10 *In | XT1C 160 TMD 80-800 3p F F | 1SDA067396R1 | 4,360 | ||
| 100 | 160 | 70 | 40-100 | 1-10 *In | 1-10 *In | XT1C 160 TMD 100-1000 3p F F | 1SDA067397R1 | 4,360 | ||
| 160 | 160 | 70 | 64-160 | 1-10 *In | 1-10 *In | XT1C 160 TMD 125-1250 3p F F | 1SDA067398R1 | 5,460 | ||
| 63 | 160 | 70 | 25.2-63 | 1-10 *In | 1-10 *In | XT1C 160 TMD 160-1600 3p F F | 1SDA067399R1 | 5,460 | ||
| 100 | 160 | 70 | 40-100 | 1-10 *In | 1-10 *In | XT1N 160 TMF 16-450 3p F F | 1SDA080827R1 | 5,180 | ||
| 160 | 160 | 70 | 64-160 | 1-10 *In | 1-10 *In | XT1N 160 TMF 20-450 3p F F | 1SDA080828R1 | 5,180 | ||
| 63 | 160 | 70 | 25.2-63 | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT1N 160 TMD 25-450 3p F F | 1SDA080829R1 | 5,180 | |
| 100 | 160 | 70 | 40-100 | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT1N 160 TMD 32-450 3p F F | 1SDA067411R1 | 5,180 | |
| 160 | 160 | 70 | 64-160 | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT1N 160 TMD 40-450 3p F F | 1SDA067412R1 | 5,180 |
XT3 - 3 poles Thermomagnetic
| สินค้า | Amp trip (AT) (In) |
Amp Frame (AF) (Iu) |
Icu at 415Vac (kA) |
I1 (A) ปรับตั้งค่า |
I3 (A) | ชื่อรุ่น | รหัสสินค้า | ราคา (บาท) |
 |
160 | 250 | 25 | 112-160 | 1600 | XT3C 250 TMD 160-1600 3p F F | 1SDA070415R1 | 8,200 |
| 200 | 250 | 25 | 140-200 | 2000 | XT3C 250 TMD 200-2000 3p F F | 1SDA070416R1 | 8,200 | |
| 250 | 250 | 25 | 175-250 | 2500 | XT3C 250 TMD 250-2500 3p F F | 1SDA070417R1 | 8,200 | |
| 63 | 250 | 36 | 44.1-63 | 630 | XT3N 250 TMD 63-630 3p F F | 1SDA068053R1 | 10,160 | |
| 80 | 250 | 36 | 56-80 | 800 | XT3N 250 TMD 80-800 3p F F | 1SDA068054R1 | 10,160 | |
| 100 | 250 | 36 | 70-100 | 1000 | XT3N 250 TMD 100-1000 3p F F | 1SDA068055R1 | 10,160 | |
| 125 | 250 | 36 | 87.5-125 | 1250 | XT3N 250 TMD 125-1250 3p F F | 1SDA068056R1 | 10,160 | |
| 160 | 250 | 36 | 112-160 | 1600 | XT3N 250 TMD 160-1600 3p F F | 1SDA068057R1 | 10,160 | |
| 200 | 250 | 36 | 140-200 | 2000 | XT3N 250 TMD 200-2000 3p F F | 1SDA068058R1 | 10,160 | |
| 250 | 250 | 36 | 175-250 | 2500 | XT3N 250 TMD 250-2500 3p F F | 1SDA068059R1 | 10,160 | |
| 63 | 250 | 50 | 44.1-63 | 630 | XT3S 250 TMD 63-630 3p F F | 1SDA068215R1 | 13,430 | |
| 80 | 250 | 50 | 56-80 | 800 | XT3S 250 TMD 80-800 3p F F | 1SDA068216R1 | 13,430 | |
| 100 | 250 | 50 | 70-100 | 1000 | XT3S 250 TMD 100-1000 3p F F | 1SDA068217R1 | 13,430 | |
| 125 | 250 | 50 | 87.5-125 | 1250 | XT3S 250 TMD 125-1250 3p F F | 1SDA068218R1 | 13,430 | |
| 160 | 250 | 50 | 112-160 | 1600 | XT3S 250 TMD 160-1600 3p F F | 1SDA068219R1 | 13,430 | |
| 200 | 250 | 50 | 140-200 | 2000 | XT3S 250 TMD 200-2000 3p F F | 1SDA068220R1 | 13,430 | |
| 250 | 250 | 50 | 175-250 | 2500 | XT3S 250 TMD 250-2500 3p F F | 1SDA068221R1 | 13,430 |
XT4 - 3 poles Electronic
| สินค้า | Amp trip (AT) (In) |
Amp Frame (AF) (Iu) |
Icu at 415Vac (kA) |
L | S | I | G | ชื่อรุ่น | รหัสสินค้า | ราคา (บาท) |
 |
250 | 250 | 36 | 100-250 | 1-10 *In | 1-10 *In | XT4N 250 Ekip Dip LS/I In=250A 3p F F* | 1SDA068126R1 | 23,160 | |
| 250 | 250 | 36 | 100-250 | 1-10 *In | 1-10 *In | XT4N 250 Ekip Dip LSI In=250A 3p F F | 1SDA100175R1 | 41,320 | ||
| 250 | 250 | 36 | 100-250 | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT4N 250 Ekip Dip LSIG In=250A 3p F F** | 1SDA100180R1-DT | 61,910 | |
| 250 | 250 | 50 | 100-250 | 1-10 *In | 1-10 *In | XT4S 250 Ekip Dip LS/I In=250A 3p F F * | 1SDA068475R1 | 24,620 | ||
| 250 | 250 | 50 | 100-250 | 1-10 *In | 1-10 *In | XT4S 250 Ekip Dip LSI In=250A 3p F F | 1SDA100205R1 | 42,700 | ||
| 250 | 250 | 50 | 100-250 | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT4S 250 Ekip Dip LSIG In=250A 3p F F** | 1SDA100210R1-DT | 63,370 | |
| 250 | 250 | 70 | 100-250 | 1-10 *In | 1-10 *In | XT4H 250 Ekip Dip LS/I In=250A 3p F F* | 1SDA068515R1 | 26,770 | ||
| 250 | 250 | 70 | 100-250 | 1-10 *In | 1-10 *In | XT4H 250 Ekip Dip LSI In=250A 3p F F | 1SDA100235R1 | 44,850 | ||
| 250 | 250 | 70 | 100-250 | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT4H 250 Ekip Dip LSIG In=250A 3p F F** | 1SDA100240R1-DT | 65,530 |
XT5 - 3 poles Thermomagnetic
| สินค้า | Amp trip (AT) (In) |
Amp Frame (AF) (Iu) |
Icu at 415Vac (kA) |
I1 (A) ปรับตั้งค่า |
I3 (A) | ชื่อรุ่น | รหัสสินค้า | ราคา (บาท) |
|
320 | 400 | 36 | 128-320 | 3200 | XT5N 400 TMA 320-3200 3p F F | 1SDA100344R1 | 22,380 |
| 400 | 400 | 36 | 160-400 | 4000 | XT5N 400 TMA 400-4000 3p F F | 1SDA100345R1 | 22,380 | |
| 500 | 630 | 36 | 200-500 | 5000 | XT5N 630 TMA 500-5000 3p F F | 1SDA100346R1 | 24,280 | |
| 630 | 630 | 36 | 252-630 | 6300 | XT5N 630 TMA 630-6300 3p F F | 1SDA100347R1 | 24,280 | |
| 320 | 400 | 50 | 128-320 | 3200 | XT5S 400 TMA 320-3200 3p F F | 1SDA100414R1 | 26,170 | |
| 400 | 400 | 50 | 160-400 | 4000 | XT5S 400 TMA 400-4000 3p F F | 1SDA100415R1 | 26,170 | |
| 500 | 630 | 50 | 200-500 | 5000 | XT5S 630 TMA 500-5000 3p F F | 1SDA100416R1 | 29,700 | |
| 630 | 630 | 50 | 252-630 | 6300 | XT5S 630 TMA 630-6300 3p F F | 1SDA100417R1 | 29,700 |
XT5 - 3 poles Electronic
| สินค้า | Amp trip (AT) (In) |
Amp Frame (AF) (Iu) |
Icu at 415Vac (kA) |
L | S | I | G | ชื่อรุ่น | รหัสสินค้า | ราคา (บาท) |
|
320 | 400 | 36 | 128-320 | 1-10 *In | 1-10 *In | XT5N 400 Ekip Dip LS/I In=320* | 1SDA100353R1 | 28,320 | |
| 400 | 400 | 36 | 160-400 | 1-10 *In | 1-10 *In | XT5N 400 Ekip Dip LS/I In=400* | 1SDA100354R1 | 28,320 | ||
| 630 | 630 | 36 | 252-630 | 1-10 *In | 1-10 *In | XT5N 630 Ekip Dip LS/I In=630* | 1SDA100355R1 | 30,470 | ||
| 320 | 400 | 50 | 128-320 | 1-10 *In | 1-10 *In | XT5S 400 Ekip Dip LS/I In=320* | 1SDA100423R1 | 32,200 | ||
| 400 | 400 | 50 | 160-400 | 1-10 *In | 1-10 *In | XT5S 400 Ekip Dip LS/I In=400* | 1SDA100424R1 | 32,200 | ||
| 630 | 630 | 50 | 252-630 | 1-10 *In | 1-10 *In | XT5S 630 Ekip Dip LS/I In=630* | 1SDA100425R1 | 35,980 | ||
| 320 | 400 | 70 | 128-320 | 1-10 *In | 1-10 *In | XT5H 400 Ekip Dip LS/I In=320* | 1SDA100489R1 | 32,880 | ||
| 400 | 400 | 70 | 160-400 | 1-10 *In | 1-10 *In | XT5H 400 Ekip Dip LS/I In=400* | 1SDA100490R1 | 32,880 | ||
| 630 | 630 | 70 | 252-630 | 1-10 *In | 1-10 *In | XT5H 630 Ekip Dip LS/I In=630* | 1SDA100491R1 | 39,690 | ||
| 320 | 400 | 36 | 128-320 | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT5N 400 Ekip Dip LSIG In=320 ** | 1SDA100361R1-DT | 62,150 | |
| 400 | 400 | 36 | 160-400 | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT5N 400 Ekip Dip LSIG In=400 ** | 1SDA100362R1-DT | 62,150 | |
| 630 | 630 | 36 | 252-630 | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT5N 630 Ekip Dip LSIG In=630 ** | 1SDA100363R1-DT | 66,970 | |
| 320 | 400 | 50 | 128-320 | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT5S 400 Ekip Dip LSIG In=320 ** | 1SDA100431R1-DT | 66,110 | |
| 400 | 400 | 50 | 160-400 | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT5S 400 Ekip Dip LSIG In=400 ** | 1SDA100432R1-DT | 66,110 | |
| 630 | 630 | 50 | 252-630 | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT5S 630 Ekip Dip LSIG In=630 ** | 1SDA100433R1-DT | 72,570 | |
| 320 | 400 | 70 | 128-320 | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT5H 400 Ekip Dip LSIG In=320 ** | 1SDA100497R1-DT | 66,710 | |
| 400 | 400 | 70 | 160-400 | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT5H 400 Ekip Dip LSIG In=400 ** | 1SDA100498R1-DT | 66,710 | |
| 630 | 630 | 70 | 252-630 | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT5H 630 Ekip Dip LSIG In=630 ** | 1SDA100499R1-DT | 76,270 |
XT6 - 3 poles Thermomagnetic
| สินค้า | Amp
trip (AT) (In) |
Amp
Frame (AF) (Iu) |
Icu at 415Vac (kA) |
I1 (A) ปรับตั้งค่า |
I3 (A) | ชื่อรุ่น | รหัสสินค้า | ราคา (บาท) |
|
800 | 800 | 36 | 560-800 | 4000-8000 | XT6N 800 TMA 800-8000 3p F F | 1SDA100718R1 | 50,790 |
| 800 | 800 | 50 | 560-800 | 4000-8000 | XT6N 800 TMA 800-8000 3p F F | 1SDA100740R1 | 51,820 | |
| 800 | 800 | 70 | 560-800 | 4000-8000 | XT6N 800 TMA 800-8000 3p F F | 1SDA100762R1 | 60,430 |
XT6 - 3 poles Electronic
| สินค้า | Amp
trip (AT) (In) |
Amp
Frame (AF) (Iu) |
Icu
at 415Vac (kA) |
L | S | I | G | ชื่อรุ่น | รหัสสินค้า | ราคา (บาท) |
 |
800 | 800 | 36 | 320-800 | 1-10 *In | 1-10 *In | XT6N 800 Ekip Dip LS/I In=800* | 1SDA100719R1 | 56,640 | |
| 800 | 800 | 36 | 320-800 | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT6N 800 Ekip Dip LSIG In=800 ** | 1SDA100723R1-DT | 102,610 | |
| 800 | 800 | 50 | 320-800 | 1-10 *In | 1-10 *In | XT6S 800 Ekip Dip LS/I In=800* | 1SDA100741R1 | 57,760 | ||
| 800 | 800 | 50 | 320-800 | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT6S 800 Ekip Dip LSIG In=800 ** | 1SDA100745R1-DT | 103,730 | |
| 800 | 800 | 70 | 320-800 | 1-10 *In | 1-10 *In | XT6H 800 Ekip Dip LS/I In=800* | 1SDA100763R1 | 67,150 | ||
| 800 | 800 | 70 | 320-800 | 1-10 *In | 1-10 *In | 0.2-1.0 *In | XT6H 800 Ekip Dip LSIG In=800 ** | 1SDA100767R1-DT | 113,110 |
XT7 - 3 poles Electronic
| สินค้า | Amp
trip (AT) (In) |
Amp
Frame (AF) (Iu) |
Icu
at 415Vac (kA) |
L | S | I | G | ชื่อรุ่น | รหัสสินค้า | ราคา (บาท) |
|
|
800 | 800 | 50 | 320-800 | 1-10 *In | 1-10 *In | XT7S 800 Ekip Dip LS/I In=800A* | 1SDA100826R1 | 69,790 | |
| 1000 | 1000 | 50 | 400-1000 | 1-10 *In | 1-10 *In | XT7S 1000 Ekip Dip LS/I In=1000A* | 1SDA100827R1 | 95,320 | ||
| 1250 | 1250 | 50 | 500-1250 | 1-10 *In | 1-10 *In | XT7S 1250 Ekip Dip LS/I In=1250A* | 1SDA100828R1 | 105,320 | ||
| 1600 | 1600 | 50 | 640-1600 | 1-10 *In | 1-10 *In | XT7S 1600 Ekip Dip LS/I In=1600A* | 1SDA100829R1 | 129,170 | ||
| 800 | 800 | 70 | 320-800 | 1-10 *In | 1-10 *In | XT7H 800 Ekip Dip LS/I In=800A* | 1SDA100890R1 | 76,930 | ||
| 1000 | 1000 | 70 | 400-1000 | 1-10 *In | 1-10 *In | XT7H 1000 Ekip Dip LS/I In=1000A* | 1SDA100891R1 | 102,040 | ||
| 1250 | 1250 | 70 | 500-1250 | 1-10 *In | 1-10 *In | XT7H 1250 Ekip Dip LS/I In=1250A* | 1SDA100892R1 | 116,070 | ||
| 1600 | 1600 | 70 | 640-1600 | 1-10 *In | 1-10 *In | XT7H 1600 Ekip Dip LS/I In=1600A* | 1SDA100893R1 | 142,610 | ||
| 800 | 800 | 50 | 320-800 | 0.6-10 *In | 1.5-15 *In | 0.1-1.0 *In | XT7S 800 Ekip Dip LSIG In=800A ** | 1SDA100834R1-DT | 104,600 | |
| 1000 | 1000 | 50 | 400-1000 | 0.6-10 *In | 1.5-15 *In | 0.1-1.0 *In | XT7S 1000 Ekip Dip LSIG In=1000A ** | 1SDA100835R1-DT | 130,130 | |
| 1250 | 1250 | 50 | 500-1250 | 0.6-10 *In | 1.5-15 *In | 0.1-1.0 *In | XT7S 1250 Ekip Dip LSIG In=1250A ** | 1SDA100836R1-DT | 140,130 | |
| 1600 | 1600 | 50 | 640-1600 | 0.6-10 *In | 1.5-15 *In | 0.1-1.0 *In | XT7S 1600 Ekip Dip LSIG In=1600A ** | 1SDA100837R1-DT | 163,980 | |
| 800 | 800 | 70 | 320-800 | 0.6-10 *In | 1.5-15 *In | 0.1-1.0 *In | XT7H 800 Ekip Dip LSIG In=800A** | 1SDA100898R1-DT | 111,740 | |
| 1000 | 1000 | 70 | 400-1000 | 0.6-10 *In | 1.5-15 *In | 0.1-1.0 *In | XT7H 1000 Ekip Dip LSIG In=1000A** | 1SDA100899R1-DT | 136,850 | |
| 1250 | 1250 | 70 | 500-1250 | 0.6-10 *In | 1.5-15 *In | 0.1-1.0 *In | XT7H 1250 Ekip Dip LSIG In=1250A** | 1SDA100900R1-DT | 150,880 | |
| 1600 | 1600 | 70 | 640-1600 | 0.6-10 *In | 1.5-15 *In | 0.1-1.0 *In | XT7H 1600 Ekip Dip LSIG In=1600A** | 1SDA100901R1-DT | 177,420 |
XT7 - 3 poles Electronic
| สินค้า | Amp
trip (AT) (In) |
Amp
Frame (AF) (Iu) |
Icu
at 415Vac (kA) |
L | S | I | G | ชื่อรุ่น | รหัสสินค้า | ราคา (บาท) |
|
|
800 | 800 | 50 | 320-800 | 1-10 *In | 1-10 *In | XT7S M 800 Ekip Dip LS/I In=800A* | 1SDA101366R1 | 87,260 | |
| 1000 | 1000 | 50 | 400-1000 | 1-10 *In | 1-10 *In | XT7S M 1000 Ekip Dip LS/I In=1000A* | 1SDA101367R1 | 119,170 | ||
| 1250 | 1250 | 50 | 500-1250 | 1-10 *In | 1-10 *In | XT7S M 1250 Ekip Dip LS/I In=1250A* | 1SDA101368R1 | 131,600 | ||
| 1600 | 1600 | 50 | 640-1600 | 1-10 *In | 1-10 *In | XT7S M 1600 Ekip Dip LS/I In=1600A* | 1SDA101369R1 | 161,500 | ||
| 800 | 800 | 70 | 320-800 | 1-10 *In | 1-10 *In | XT7H M 800 Ekip Dip LS/I In=800A* | 1SDA101430R1 | 96,080 | ||
| 1000 | 1000 | 70 | 400-1000 | 1-10 *In | 1-10 *In | XT7H M 1000 Ekip Dip LS/I In=1000A* | 1SDA101431R1 | 127,490 | ||
| 1250 | 1250 | 70 | 500-1250 | 1-10 *In | 1-10 *In | XT7H M 1250 Ekip Dip LS/I In=1250A* | 1SDA101432R1 | 145,040 | ||
| 1600 | 1600 | 70 | 640-1600 | 1-10 *In | 1-10 *In | XT7H M 1600 Ekip Dip LS/I In=1600A* | 1SDA101433R1 | 178,220 | ||
| 800 | 800 | 50 | 320-800 | 0.6-10 *In | 1.5-15 *In | 0.1-1.0 *In | XT7S M 800 Ekip Dip LSIG In=800A** | 1SDA101374R1-DT | 126,940 | |
| 1000 | 1000 | 50 | 400-1000 | 0.6-10 *In | 1.5-15 *In | 0.1-1.0 *In | XT7S M 1000 Ekip Dip LSIG In=1000A** | 1SDA101375R1-DT | 158,860 | |
| 1250 | 1250 | 50 | 500-1250 | 0.6-10 *In | 1.5-15 *In | 0.1-1.0 *In | XT7S M 1250 Ekip Dip LSIG In=1250A** | 1SDA101376R1-DT | 171,290 | |
| 1600 | 1600 | 50 | 640-1600 | 0.6-10 *In | 1.5-15 *In | 0.1-1.0 *In | XT7S M 1600 Ekip Dip LSIG In=1600A** | 1SDA101377R1-DT | 201,180 | |
| 800 | 800 | 70 | 320-800 | 0.6-10 *In | 1.5-15 *In | 0.1-1.0 *In | XT7H M 800 Ekip Dip LSIG In=800A** | 1SDA101438R1-DT | 135,840 | |
| 1000 | 1000 | 70 | 400-1000 | 0.6-10 *In | 1.5-15 *In | 0.1-1.0 *In | XT7H M 1000 Ekip Dip LSIG In=1000A** | 1SDA101439R1-DT | 167,170 | |
| 1250 | 1250 | 70 | 500-1250 | 0.6-10 *In | 1.5-15 *In | 0.1-1.0 *In | XT7H M 1250 Ekip Dip LSIG In=1250A** | 1SDA101440R1-DT | 184,720 | |
| 1600 | 1600 | 70 | 640-1600 | 0.6-10 *In | 1.5-15 *In | 0.1-1.0 *In | XT7H M 1600 Ekip Dip LSIG In=1600A** | 1SDA101441R1-DT | 217,900 |
Breaker Accessories
| สินค้า | For | ชื่อรุ่น | รหัสสินค้า | ราคา (บาท) |
|
|
XT1 ,XT2 ,XT3 ,XT4 | SOR-C XT1..XT4 F/P 220-240Vac-220-250Vdc | 1SDA066325R1 | 3,230 |
| XT1 ,XT2 ,XT3 ,XT4 | UVR XT1..XT4 220-240Vac-220-250Vdc | 1SDA066399R1 | 4,100 | |
| XT1 ,XT2 ,XT3 ,XT4 | UVD T1..T6 - XT1..XT4 220..250Va.c./d.c. | 1SDA051361R1 | 11,450 | |
| XT1 ,XT3 | MOD XT1-XT3 220...250 V ac/dc | 1SDA066460R1 | 21,440 | |
| XT2 ,XT4 | Stored energy Motor Operator MOE XT2-XT4 | 1SDA066466R1 | 35,810 | |
| XT2 ,XT4 | MOE-E XT2-XT4 220..250V ac/dc X COM.DIST | 1SDA066472R1 | 41,150 | |
| XT1 ,XT2 ,XT3 ,XT4 | AUX-C 1Q+1SY 250 V XT1..XT4 F/P | 1SDA066431R1 | 1,830 | |
| XT1 ,XT2 ,XT3 ,XT4 | AUX-C 2Q+1SY 250 V XT1..XT4 F/P | 1SDA066433R1 | 2,750 | |
| XT2 ,XT4 | AUX-C 3Q L 250Vac/dc XT2-XT4 F/P | 1SDA066427R1 | 2,750 | |
| XT2 ,XT4 | AUX-C 3Q+1SY 250 V XT2..XT4 F/P | 1SDA066434R1 | 3,670 | |
| XT2 ,XT4 | AUX-SA-C 1S51 250Vac/dc XT2-XT4 F/P | 1SDA066429R1 | 1,220 | |
| XT1 ,XT3 | RHD XT1-XT3 F/P NORM. DIRETTA | 1SDA066475R1 | 2,670 | |
| XT1 ,XT3 | RHE XT1-XT3 F/P NORM. RINVIATA | 1SDA066479R1 | 3,680 | |
| XT2 ,XT4 | RHD Normal Direct Handle XT2-XT4 | 1SDA069053R1 | 2,800 | |
| XT2 ,XT4 | RHE Normal Transmitted Handle XT2-XT4 | 1SDA069055R1 | 3,870 | |
| XT1 | Mechanical interlock XT1-XT1 | MIR-XT1-XT1-DT | 15,230 | |
| MIR-HR XT1..XT4 | 1SDA066637R1 | |||
| MIR-HR XT1..XT4 | 1SDA066639R1 | |||
| Plate XT1 F | 1SDA066639R1 | |||
| XT1 ,XT3 | Mechanical interlock XT1-XT3 | MIR-XT1-XT3-DT | 15,410 | |
| MIR-HR XT1..XT4 | 1SDA066637R1 | |||
| Plate XT1 F | 1SDA066639R1 | |||
| Plate XT3 F | 1SDA066643R1 | |||
| XT3 | Mechanical interlock XT3-XT3 | MIR-XT3-XT3-DT | 15,590 | |
| MIR-HR XT1..XT4 | 1SDA066637R1 | |||
| Plate XT3 F | 1SDA066643R1 | |||
| Plate XT3 F | 1SDA066643R1 | |||
| XT2 | Mechanical interlock XT2-XT2 | MIR-XT2-XT2-DT | 15,370 | |
| MIR-HR XT1.XT4 TELAIO INTERB.MEC.ORIZ | 1SDA066637R1 | |||
| MIR-P XT2 F | 1SDA066641R1 | |||
| MIR-P XT2 F | 1SDA066641R1 | |||
| XT2 ,XT4 | Mechanical interlock XT2-XT4 | MIR-XT2-XT4-DT | 15,590 | |
| MIR-HR XT1.XT4 TELAIO INTERB.MEC.ORIZ | 1SDA066637R1 | |||
| MIR-P PIASTRA x XT2 F | 1SDA066641R1 | |||
| MIR-P XT4 F | 1SDA066645R1 | |||
| XT4 | Mechanical interlock XT4-XT4 | MIR-XT4-XT4-DT | 15,810 | |
| MIR-HR XT1.XT4 TELAIOINTERB.MEC.ORIZ | 1SDA066637R1 | |||
| MIR-P XT4 F | 1SDA066645R1 | |||
| MIR-P XT4 F | 1SDA066645R1 | |||
| XT1,XT3 | RHS L XT1-XT3 F/P NORMALE | 1SDA066579R1 | 4,050 | |
| XT1,XT3 | RHS R XT1-XT3 F/P NORMALE | 1SDA066581R1 | 4,050 | |
| XT1,XT2 ,XT3 ,XT4 | RHL XT1.XT4 KEY LOCK RONIS EQ. FEL. A | 1SDA066618R1 | 1,090 | |
| XT2,XT4 | RHS L Normal Left Lateral Handle | 1SDA069058R1 | 4,250 | |
| XT2,XT4 | RHS R Normal Right Lateral Handle | 1SDA069060R1 | 4,250 | |
| XT2,XT4 | RHE_H LH XT1...XT4 MANIGLIA X C.M.RINV | 1SDA066583R1 | 2,710 | |
| XT1 | KLC XT1 KEY LOCK RONIS EQ.FEL.A OP/CL | 1SDA066598R1 | 1,690 | |
| XT3 | KLC XT3 KEY LOCK RONIS EQ.FELA OP/CL | 1SDA066610R1 | 1,690 | |
| XT1,XT2,XT3,XT4 | Keylock on the handle | 1SDA066617R1 | 1,090 | |
| XT1,XT3 | MOL-D XT1-XT3 KEY LOCK MOTOR XMOD | 1SDA066623R1 | 1,090 | |
| XT2,XT4 | MOL-D XT2-XT4 KEY LOCK MOTOR XMOE | 1SDA066629R1 | 1,120 | |
| XT1,XT3 | PLL Removable lock with padlocks in open position | 1SDA066588R1 | 790 | |
| XT1,XT3 | PLL Fixed lock with padlocks in open/closed position XT1-XT3 | 1SDA066591R1 | 1,580 | |
| XT2 ,XT4 | PLL Fixed lock with padlocks in open/dosed position-XT2-XT4 | 1SDA066592R1 | 1,620 | |
| XT1 | RC Inst x XT1 3p F | 1SDA067122R1 | 26,260 | |
| XT1 | RC Sel x XT1 3p F | 1SDA067123R1 | 26,260 | |
| XT3 | RC Inst x XT3 3p F | 1SDA067127R1 | 31,940 | |
| XT3 | RC Sel x XT3 3p F | 1SDA067128R1 | 31,940 | |
| Front for FLD locks | 1SDA066635R1 | 1,930 | ||
| XT2 | XT2 Plug-in Set | 1SDA068187R1-DT | 17,470 | |
| XT2 P FP 3p EF | 1SDA068187R1 | |||
| KIT P MP XT2 3p | 1SDA066278R1 | |||
| CONN. PRESA-SPINA MP 12PIN XT2-XT4 | 1SDA066413R1 | |||
| CONN. PRESA-SPINA FP 12PIN XT2-XT4 | 1SDA066414R1 | |||
| XT4 | XT4 Withdrawable Set | 1SDA068204R1-DT | 16,870 | |
| XT4 W FP 3p EF | 1SDA068204R1 | |||
| KIT W MP XT4 3p | 1SDA066286R1 | |||
| FLD XT2-XT4 W PER COM, A LEVA | 1SDA066636R1 | |||
| XT1,XT3 | PB 100mm 4pcs XT1-XT3 3p DIAF.SEP.F.BAS | 1SDA066676R1 | 450 | |
| XT1 | KIT FC Cu XT1 3pcs | 1SDA066905R1 | 860 | |
| XT2 | KIT FC Cu XT2 3pcs | 1SDA066909R1 | 900 | |
| XT1 | KIT R XT1 6pcs | 1SDA066939R1 | 2,860 | |
| XT2 | KIT R XT2 6pcs | 1SDA066943R1 | 3,010 | |
| XT3 | KIT R XT3 6pcs | 1SDA066947R1 | 3,170 | |
| XT4 | KIT R XT4 6pcs | 1SDA066951R1 | 3,460 |
Breaker Accessories
XT5 - XT6 Accessories
| สินค้า | For | ชื่อรุ่น | รหัสสินค้า | ราคา (บาท) |
|
|
XT5 ,XT6 | SOR-C XT5-XT6 220...240 Vac | 1SDA104934R1 | 4,290 |
| XT5 ,XT6 | UVR-C XT5-XT6 220...250 Vac/dc | 1SDA104958R1 | 5,120 | |
| XT5 ,XT6 | UVD XT5...XT6 220...250 Vac/dc | 1SDA101982R1 | 13,950 | |
| XT5,XT6 | AUX-C XT5-XT6 1Q 1SY 250 Vac/dc | 1SDA066431R1 | 1,830 | |
| XT5,XT6 | AUX-C XT5-XT6 3Q 1SY 250 Vac/dc | 1SDA066434R1 | 3,670 | |
| XT2,XT4 ,XT5 ,XT6 | AUX-SA-C 1551 250Vac/dc XT2-XT4...XT6 F/P | 1SDA066429R1 | 1,220 | |
| XT5 | Motor Operator XT5 220...250 Vac/dc | 1SDA104885R1 | 45,710 | |
| XT6 | Motor Operator XT6 220...250 Vac/dc | 1SDA104895R1 | 67,230 | |
| XT5 | Rotary-RHD XT5 Normal Direct | 1SDA104826R1 | 3,590 | |
| XT5 | Rotary-RHE XT5 Normal Transmitted | 1SDA104843R1 | 5,290 | |
| XT6 | Rotary-RHD XT6 Normal Direct | 1SDA104832R1 | 5,780 | |
| XT6 | Rotary-RHE XT6 Normal Transmitted | 1SDA104853R1 | 8,340 | |
| XT5 | Front Flange - FLD XT5 F/P (padlock) | 1SDA104871R1 | 2,320 | |
| XT6 | Front Flange - FLD XT6 F/P (padlock) | 1SDA104873R1 | 2,660 | |
| XT5 | KeyLock for Front/Rotary Handle Type A, XT5 | 1SDA105082R1 | 1,800 | |
| XT6 ,XT7 | KeyLock for Front/Rotary Handle Type A, XT6 ,XT7 | 1SDA105086R1 | 3,370 | |
| XT5 ,XT6 | MOL-S KE.LO. RONIS EQ.A 1228XMOE (XT5-XT6) | 1SDA105094R1 | 1,800 | |
| XT5 | Mechanical Interlock XT5 | MIR-XT5-DT | 27,460 | |
| MIR-H XT5 | 1SDA105117R1 | |||
| Plate XT5 F | 1SDA105122R1 | |||
| Plate XT5 F | 1SDA105122R1 | |||
| XT6 | Mechanical Interlock XT6 | MIR-XT6-DT | 29,570 | |
| MIR-H XT6 | 1SDA105118R1 | |||
| Plate XT6 F | 1SDA105126R1 | |||
| Plate XT6 F | 1SDA105126R1 |
Breaker Accessories
XT7 - XT7-M Accessories
| สินค้า | For | ชื่อรุ่น | รหัสสินค้า | ราคา (บาท) |
|
|
XT7 ,XT7M | SOR XT7-XT7M 220...240 Vac/dc | 1SDA073674R1 | 6,680 |
| XT7 ,XT7M | UVR XT7-XT7M 220...240 Vac/dc | 1SDA073700R1 | 8,540 | |
| XT7 ,XT7M | Electronic Time Delay for UVR 220/250V XT7-XT7M | 1SDA038320R1 | 11,970 | |
| XT7M | SCR XT7 M 220...240 Vac/dc | 1SDA073687R1 | 6,680 | |
| XT7 ,XT7M | AUX XT7-XT7M 4Q 400V | 1SDA073750R1 | 6,130 | |
| XT7 | AUX XT7 1SY 400V | 1SDA104813R1 | 3,000 | |
| XT7 ,XT7M | Aux-SA XT7-XT7M S51 250 Vac | 1SDA073776R1 | 3,380 | |
| XT7M | RTC 250VAC E1.2-XT7M | 1SDA073770R1 | 2,480 | |
| XT7M | Spring charging motor XT7M 220...250 Vac/dc | 1SDA104922R1 | 32,710 | |
| XT7 ,XT7M | Mechanical interlock for 2 CBs(A) | XT7 Mech Interlock Type A | 40,380 | |
| Type A Horizontal | 1SDA073881R1 | |||
| Support for mechanical interlock for fixed CB Type A - wall mounted | 1SDA073894R1 | |||
| Support for mechanical interlock for fixed CB Type A - wall mounted | 1SDA073894R1 | |||
| XT7 | Rotary - RHD XT7 Normal Direct | 1SDA104838R1 | 6,080 | |
| XT7 | RHE Normal transmitted handle | 1SDA104863R1 | 8,780 | |
| XT7 | PLL - Padlock in open position XT7 | 1SDA105104R1 | 3,640 | |
| XT7M | PLC Padlocks in open position D=7mm | 1SDA073801R1 | 1,400 | |
| XT7 | KLC-S Key lock in open position XT7 ,Type A keys | 1SDA105071R1 | 3,370 | |
| XT7M | KLC-S Key lock in open position XT7-M ,Key N.20005 | 1SDA107495R1 | 3,370 | |
| XT6 ,XT7 | KeyLock for Front/Rotary Handle Type A, XT6 ,XT7 | 1SDA105086R1 | 3,370 |
XT2 ,XT4 Communication
Internal Module
| สินค้า | For | ชื่อรุ่น | รหัสสินค้า | ราคา (บาท) |
|
|
XT2 ,XT4 | EKIP COM ETHERNET/IP XT2-XT4 INT | 1SDA105173R1 | 29,180 |
| EKIP COM HUB XT2-XT4 INT | 1SDA105160R1 | 19,020 | ||
| EKIP COM IEC61850 XT2-XT4 INT | 1SDA105174R1 | 72,910 | ||
| EKIP COM MODBUS RS-485 XT2-XT4 INT F/P | 1SDA105175R1 | 14,630 | ||
| EKIP COM MODBUS TCP XT2-XT4 INT | 1SDA105177R1 | 17,220 | ||
| EKIP COM PROFINET XT2-XT4 INT | 1SDA105180R1 | 27,030 | ||
| EKIP LINK XT2-XT4 INT | 1SDA105197R1 | 21,870 | ||
| EKIP COM STA MODBUS TCP XT2-XT4 INT F/P | 1SDA105183R1 | 18,250 | ||
| EKIP COM STA MODB.RS-485 XT2-XT4 INT F/P | 1SDA105181R1 | 13,860 | ||
| External Module | ||||
| XT2 ,XT4 | EKIP COM MODBUS RS-485 Tmax XT | 1SDA105166R1 | 19,890 | |
| EKIP COM MODBUS TCP Tmax XT | 1SDA105167R1 | 23,420 | ||
| EKIP COM PROFIBUS Tmax XT | 1SDA105170R1 | 40,030 | ||
| EKIP COM PROFINET Tmax XT | 1SDA105171R1 | 36,760 | ||
| EKIP COM DEVICENET Tmax XT | 1SDA105162R1 | 36,760 | ||
| EKIP COM ETHERNET/IP Tmax XT | 1SDA105163R1 | 39,690 | ||
| EKIP COM IEC61850 Tmax XT | 1SDA105165R1 | 99,170 | ||
| EKIP LINK Tmax XT | 1SDA105172R1 | 29,790 | ||
| Ekip Com Hub Tmax XT | 1SDA105164R1 | 25,830 | ||
| EKIP COM R MODBUS TCP R Tmax XT | 1SDA107402R1 | 23,420 | ||
| EKIP COM R PROFINET Tmax XT | 1SDA107403R1 | 36,760 | ||
| EKIP COM R ETHERNET/IP Tmax XT | 1SDA107404R1 | 39,690 | ||
| Ekip Com R IEC61850 Tmax XT | 1SDA107405R1 | 99,170 | ||
| Ekip Cartridge | Ekip Cartridge 2 slots XT2-XT4-XT5 | 1SDA105203R1 | 5,310 | |
| Ekip Cartridge 4 slots XT2-XT4-XT5 | 1SDA105204R1 | 7,080 | ||
| Power Supply modules | EKIP supply 110-240Vac | 1SDA074172R1 | 9,810 | |
| EKIP supply 24-48Vdc | 1SDA074173R1 | 9,810 | ||
XT5 ,XT7 ,XT7M Communication
Internal Module
| สินค้า | For | ชื่อรุ่น | รหัสสินค้า | ราคา (บาท) |
|
|
XT5 | EKIP COM ETHERNET/IP XT5 INT | 1SDA105185R1 | 30,560 |
| EKIP COM HUB XT5 INT | 1SDA105161R1 | 19,890 | ||
| EKIP COM IEC61850 XT5 INT | 1SDA105186R1 | 76,360 | ||
| EKIP COM MODBUS RS-485 XT5 INT F/P | 1SDA105187R1 | 15,320 | ||
| EKIP COM MODBUS TCP XT5 INT | 1SDA105189R1 | 18,080 | ||
| EKIP COM PROFINET XT5 INT | 1SDA105192R1 | 28,240 | ||
| External Module | ||||
| XT5 ,XT7 ,XT7M | EKIP COM MODBUS RS-485 Tmax XT | 1SDA105166R1 | 19,890 | |
| EKIP COM MODBUS TCP Tmax XT | 1SDA105167R1 | 23,420 | ||
| EKIP COM PROFIBUS Tmax XT | 1SDA105170R1 | 40,030 | ||
| EKIP COM PROFINET Tmax XT | 1SDA105171R1 | 36,760 | ||
| EKIP COM DEVICENET Tmax XT | 1SDA105162R1 | 36,760 | ||
| EKIP COM ETHERNET/IP Tmax XT | 1SDA105163R1 | 39,690 | ||
| EKIP COM IEC61850 Tmax XT | 1SDA105165R1 | 99,170 | ||
| EKIP LINK Tmax XT | 1SDA105172R1 | 29,790 | ||
| Ekip Com Hub Tmax XT | 1SDA105164R1 | 25,830 | ||
| EKIP COM R MODBUS TCP R Tmax XT | 1SDA107402R1 | 23,420 | ||
| EKIP COM R PROFINET Tmax XT | 1SDA107403R1 | 36,760 | ||
| EKIP COM R ETHERNET/IP Tmax XT | 1SDA107404R1 | 39,690 | ||
| Ekip Com R IEC61850 Tmax XT | 1SDA107405R1 | 99,170 | ||
| Ekip Cartridge | Ekip Cartridge 2 slots XT2-XT4-XT5 | 1SDA105203R1 | 5,310 | |
| Ekip Cartridge 4 slots XT2-XT4-XT5 | 1SDA105204R1 | 7,080 | ||
| Power Supply modules | EKIP supply 110-240Vac | 1SDA074172R1 | 9,810 | |
| EKIP supply 24-48Vdc | 1SDA074173R1 | 9,810 | ||
